16kw Paver Block Making Machine Six Heads Hydraulic System Press CE Approved

Ask Lasest Price
Model Number :	FR
Certification :	ISO/CE
Price :	NEGOTIABLE
Payment Terms :	T/T,L/C,Western Union,Trade Assurance
Supply Ability :	100SET PER MONTH
Delivery Time :	WITHIN 7-10 WORK DAYS

Add to Cart

Product Details
Company Profile

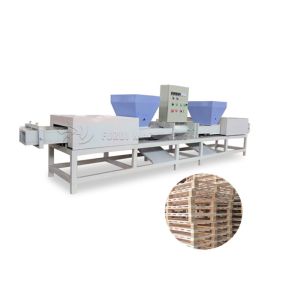

16kw Paver Block Making Machine Six Heads Hydraulic System Press CE Approved

16kw Power Wood Block Making Machine Four Head Six Heads

Usage of Wood Block Making Machine:

This wood pallet maker is used to turn the wood waste such as sawdust, wood wools into the pallet feet which is for the transportation pallet. The final product could get the E1 grade
The wood pallet maker could be solid without hole in the center, also could be hollow.
Besides, you could customize the mold for other shape wood waste compressed products.
Wood pallet Block sizes could be customised from 75mm to 145mm. And the usual sizes are90*90mm, 90*100mm, 100*100mm,80*90mm.

Technical parameter of Wood Block Making Machine

Model	FR-1 Double Head	FR-2 Four Head	FR-3 Six head
Size(mm)	48005001420	48005801420	49009401420
Capacity	2-3m3/24h	4-6m3/24h	6-8m3/24h
Glue water amount	100-120kg/m3	100-120kg/m3	100-120kg/m3
Density	550-600kg/m3	550-600kg/m3	550-600kg/m3
Weight	1000kg	1500kg	2200Kg
Power	12kw	16-18kw	24kw

Description of the Wood Block Making Machine:

1. It usually used for processing wood pallet feet by compress the sawdust.

2. Hydraulic system press and high temperature compress

3. It normally needs a production line including wood crusher--sawdust dryer--sawdust mixer --block press machine--Automatic block cutter

4. Each side has the same forming block size .

5. English language electric panel .

6. It can work continuously 24 hours per day .

7. investment recoupment period is 10— 12 months .

we are manufacturing three type of the wood sawdust block press machine.first one is two forming heads,second one is four forming heads,third is six forming heads

The flow of the Wood Block Making Machine production line:

crusher→ dryer →the gluing machine → wood black pressing machine → cutting equipment
